PELab | The Power Electronics Rapid Development System

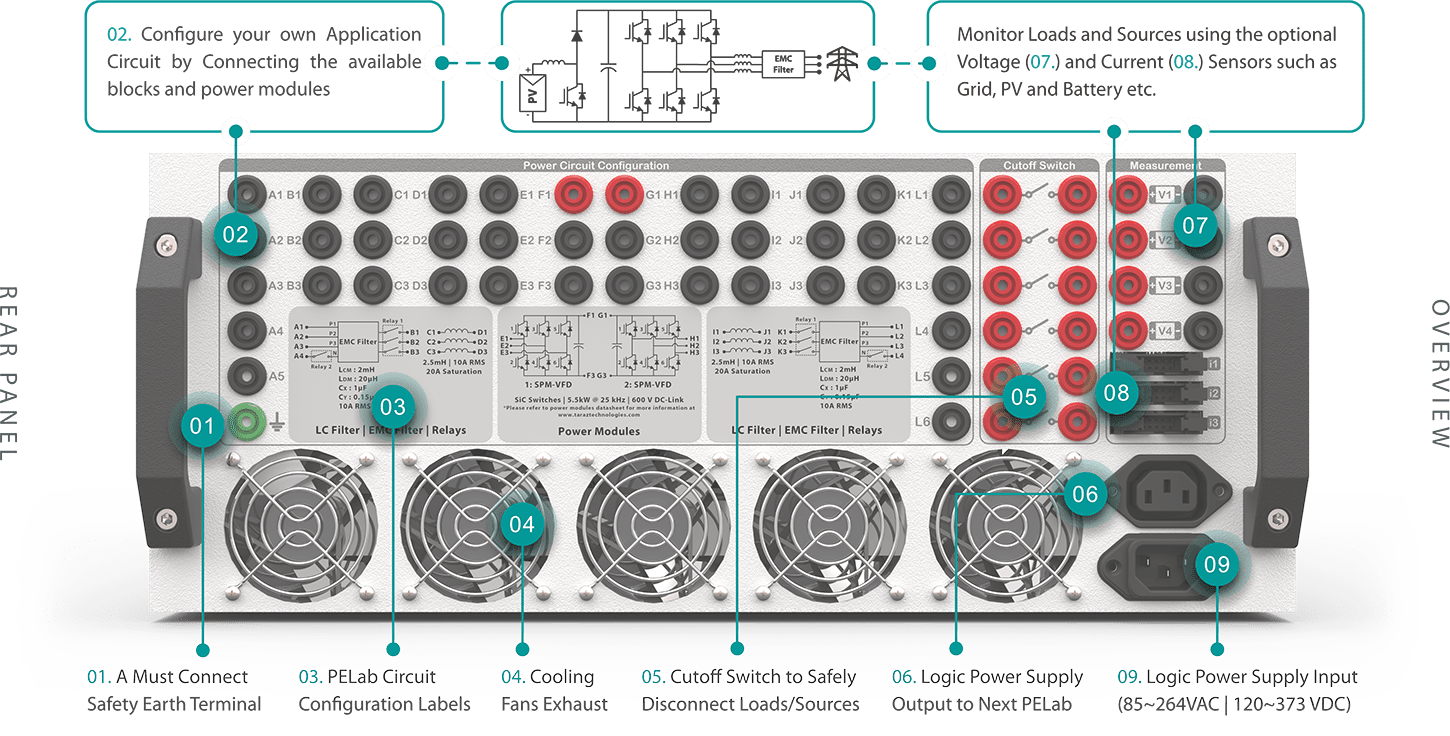

The PELab is a modular power electronics development system that connects to multiple controllers and real-time HIL simulator simultaneously. The PELab can operate in multiple modes that make the research and development cycle faster. It features fully isolated measurements that can connect to oscilloscopes directly without any probes and includes advanced protection features such as SCP, OCP, OVP & OTP. The PELab also includes an industrial-grade embedded controller based on ARM Cortex M7/M4 dual-core microcontroller with an integrated 5″ touch display and multiple communication ports. The PELab can be ordered with various commonly used power electronics topologies, while the banana connectors on the back panel enable different application circuit configurations.
Videos
PELab System Overview
PELab Introduction Demo
How to Accelerate Power Electronics R&D cycle with PELab and OPAL-RT Real-Time Simulators

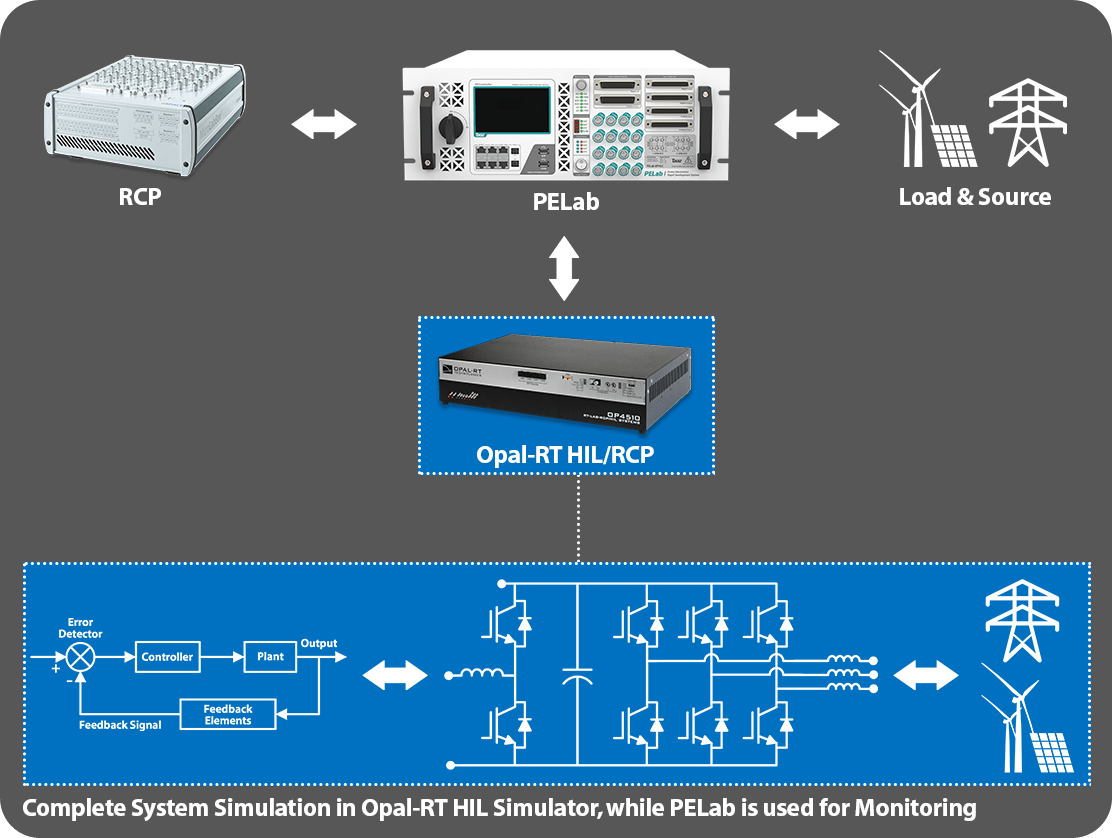

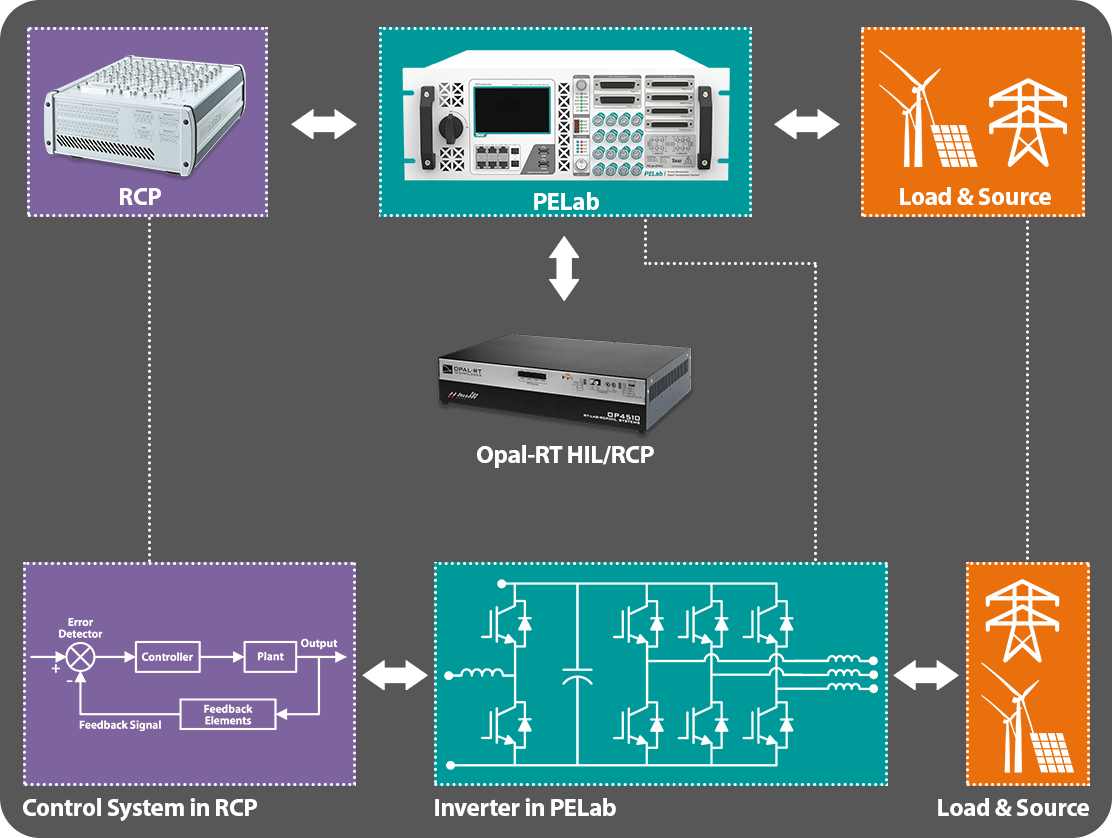

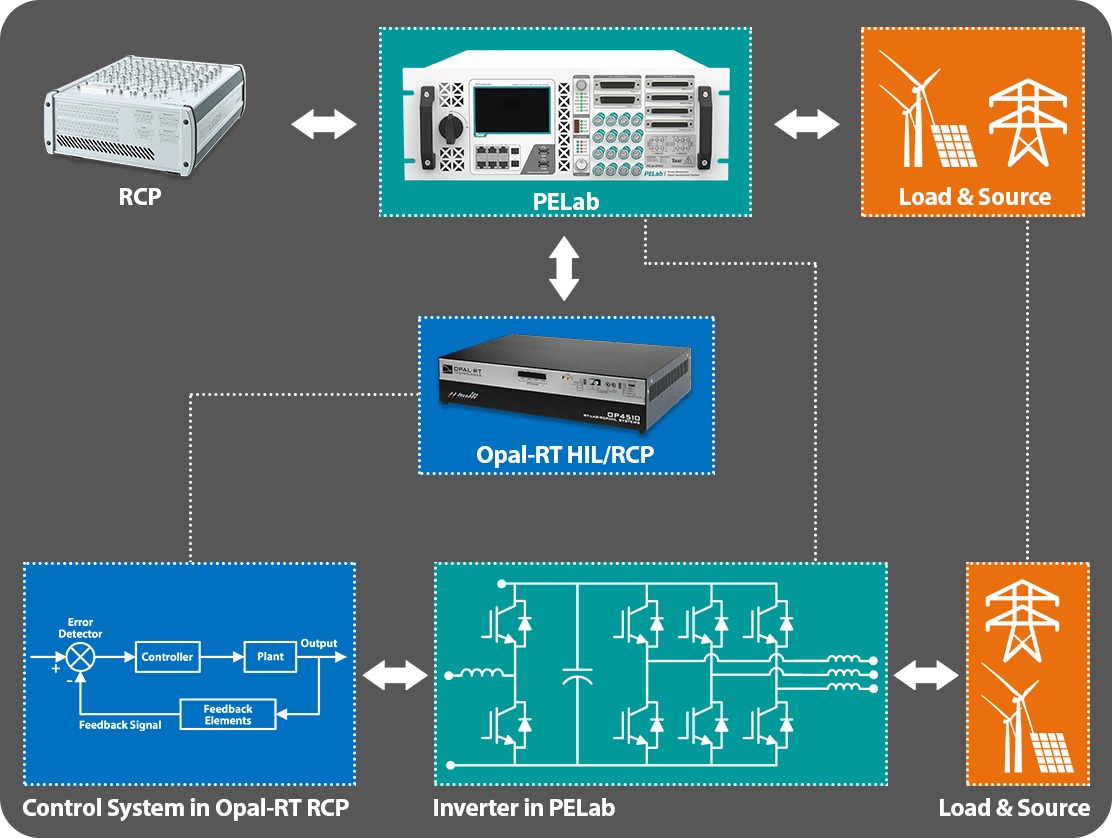

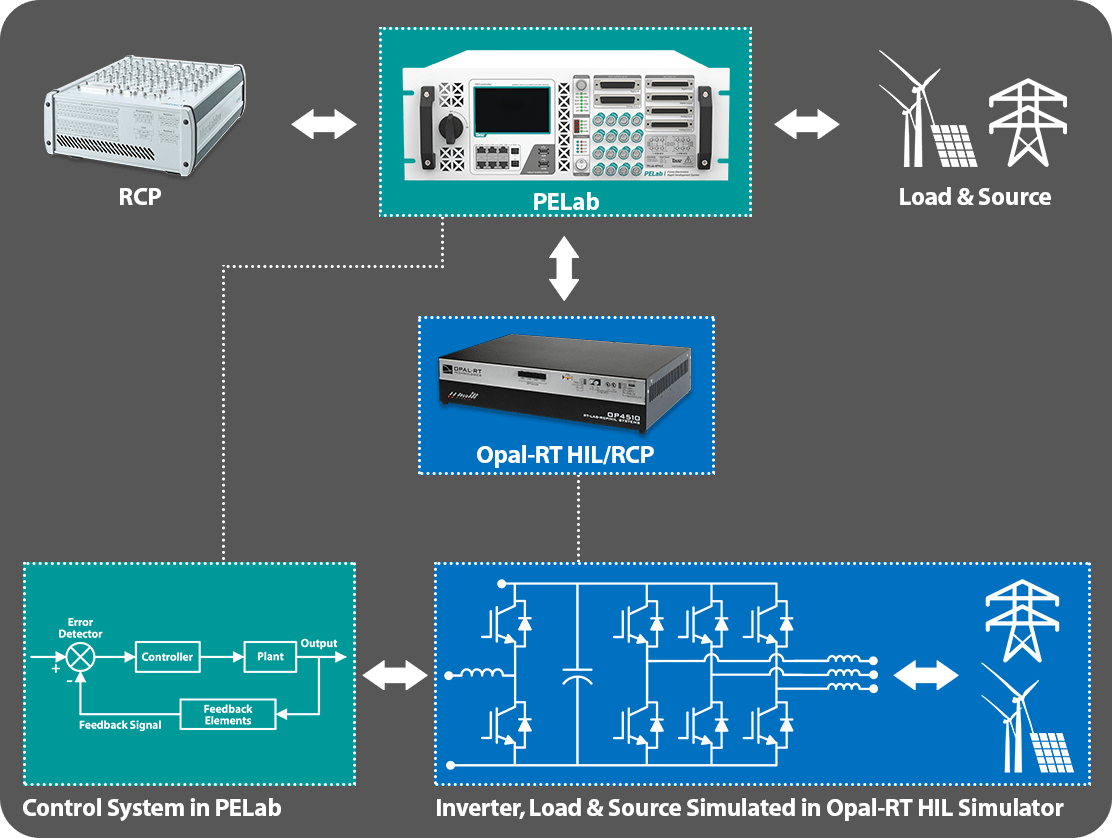

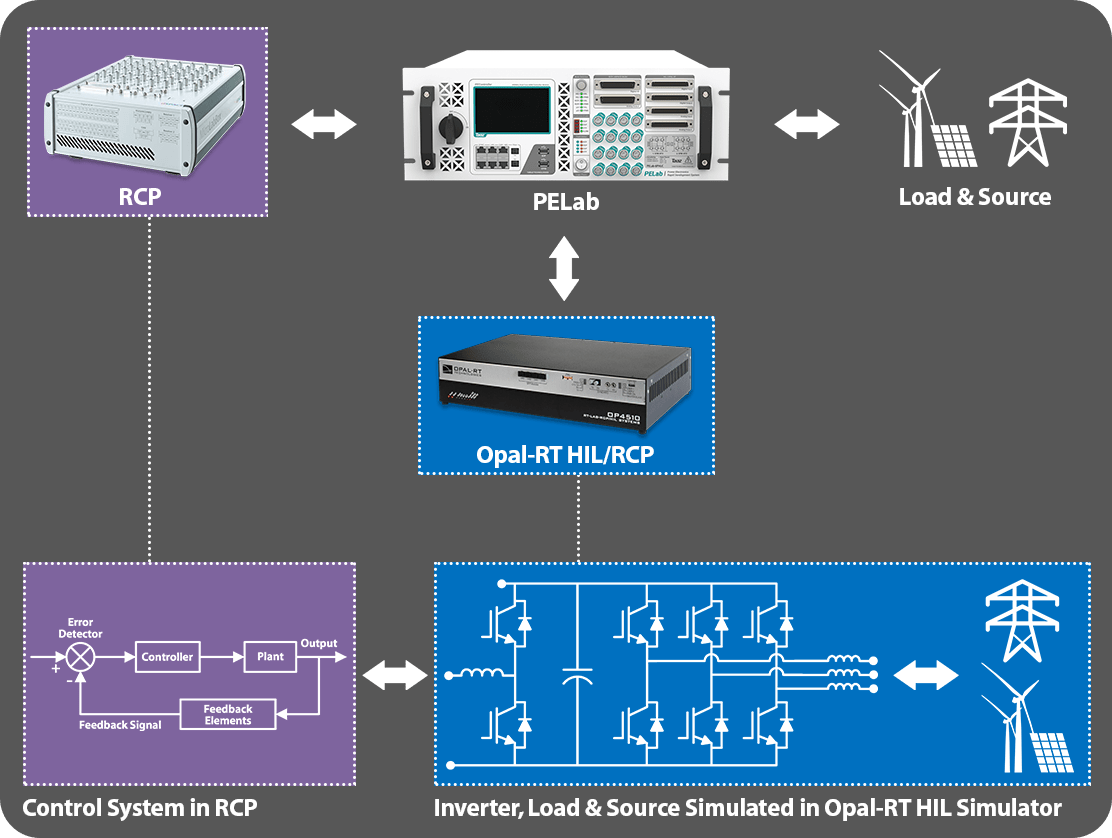

PELab Operation Modes

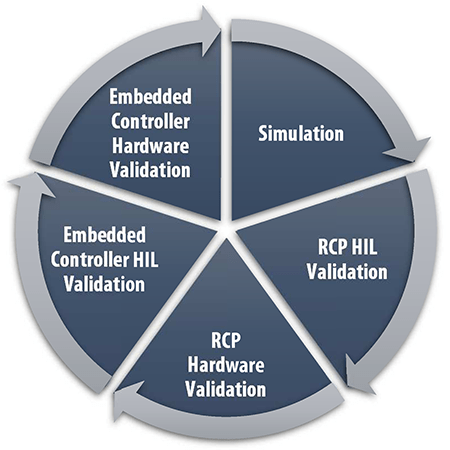

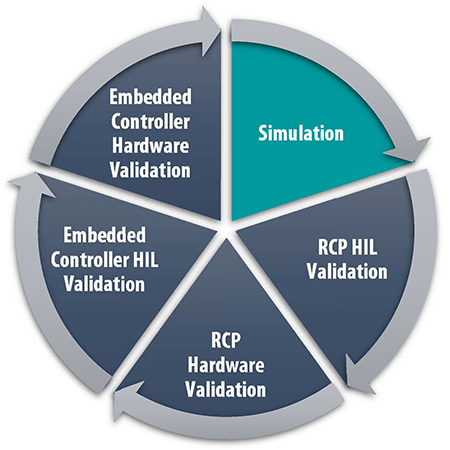

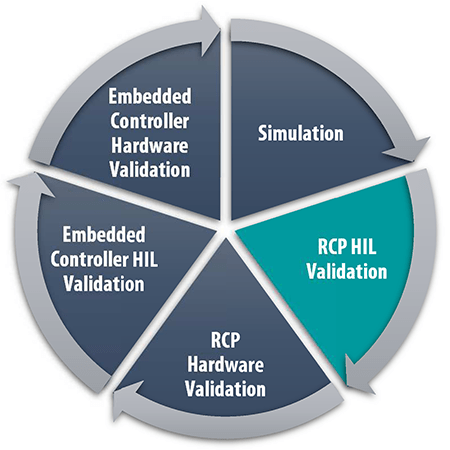

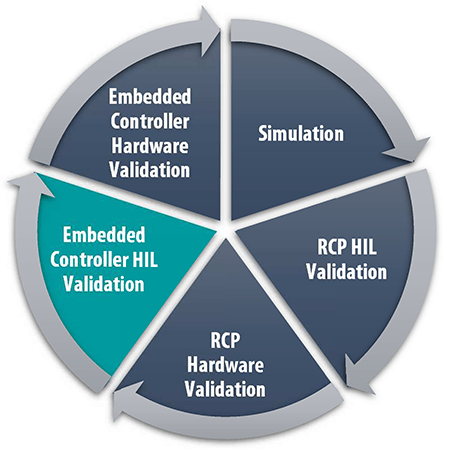

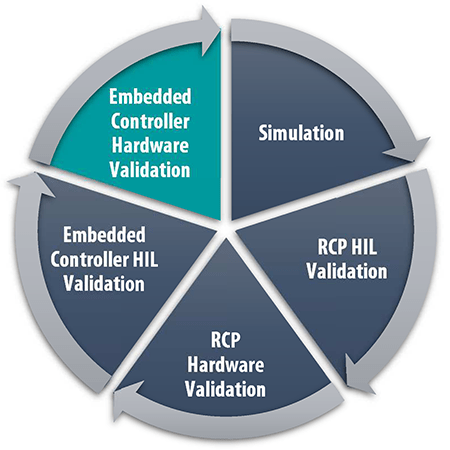

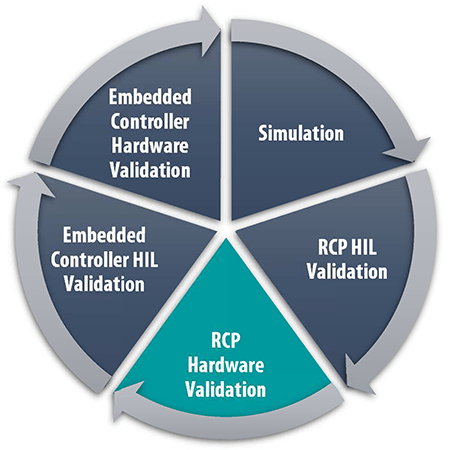

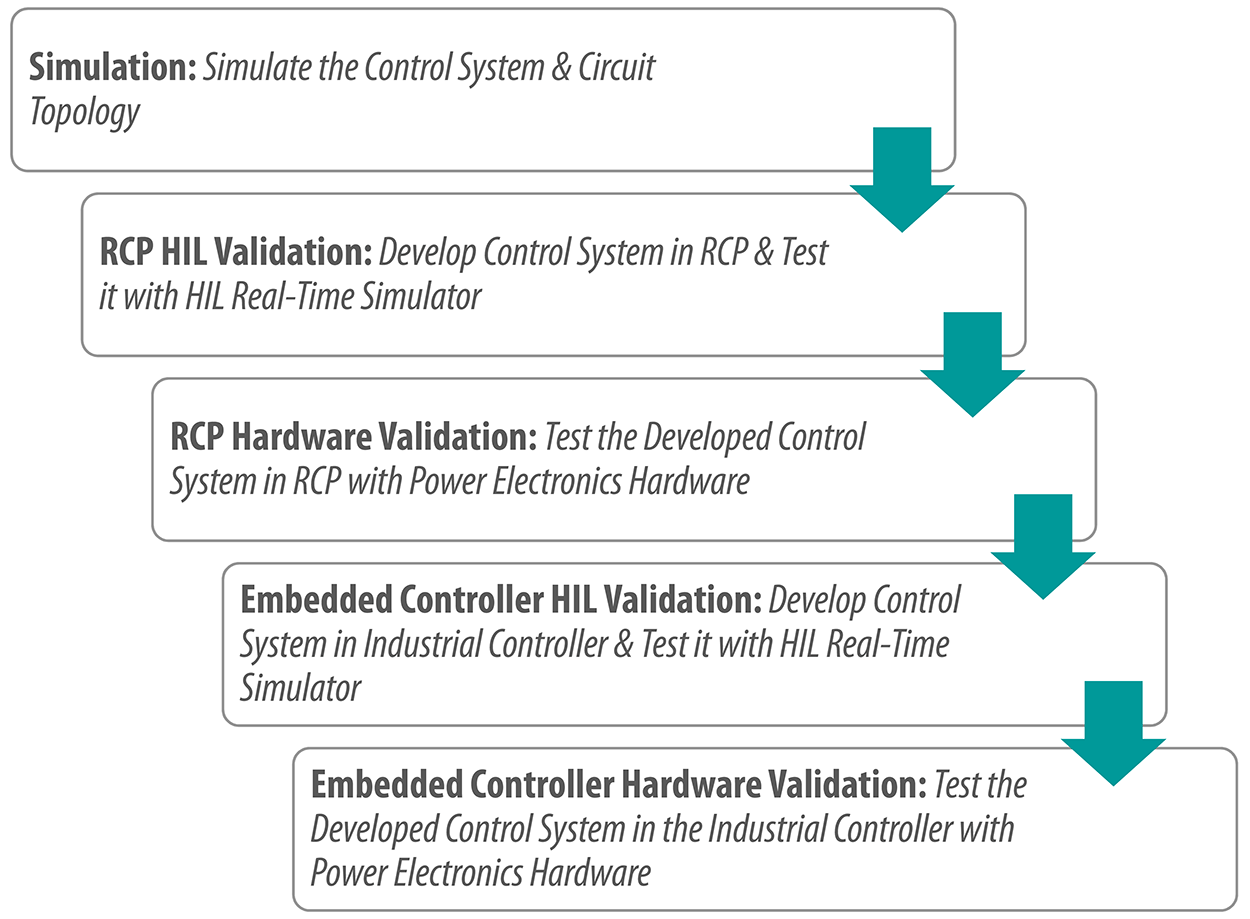

R&D Cycle Overview

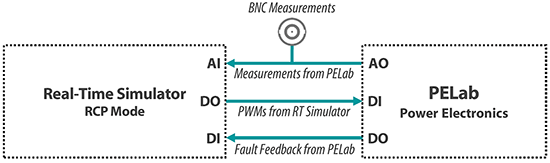

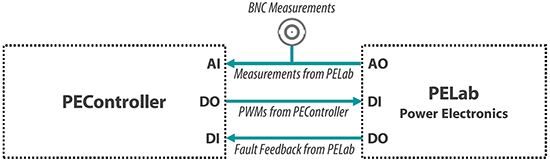

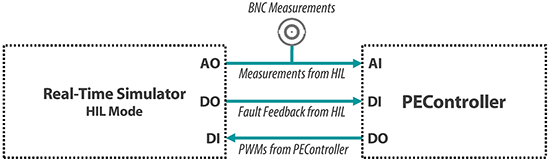

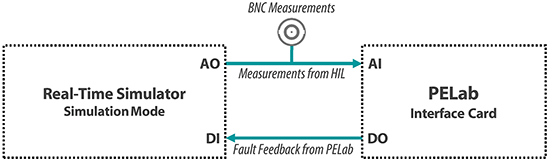

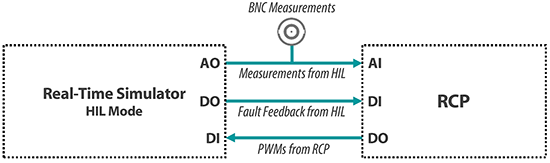

The PELab accelerates the power electronics research and development by enabling a single setup for all the validation stages in the R&D cycle. The operation mode can be selected using the knob on the front panel. A multiplexing logic routes the analog and digital signals between three controllers and two targets. The targets are either the actual power electronics hardware inside the PELab or a simulated power electronics inside the real-time simulator. This enables seamless shifting between the different validation stages.

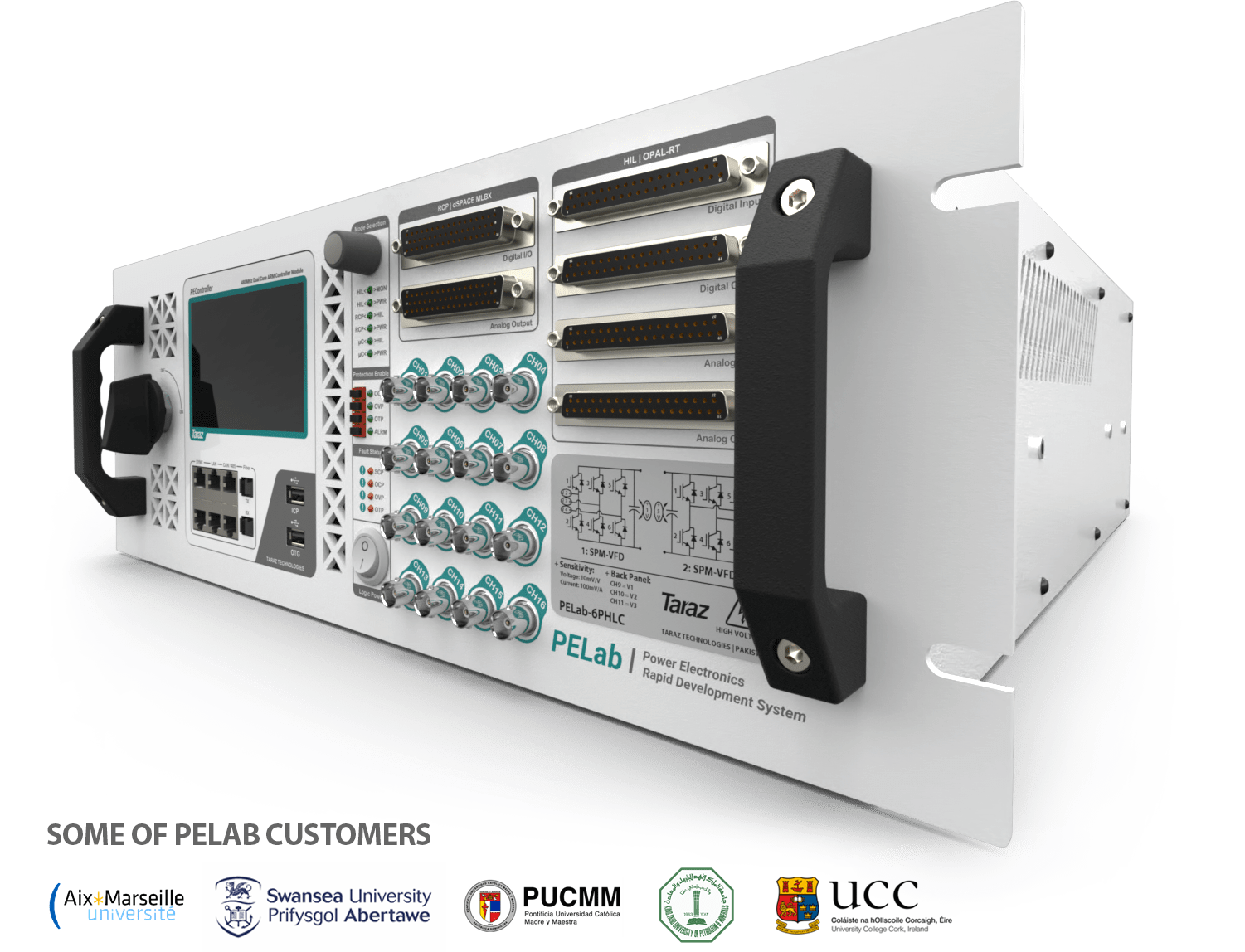

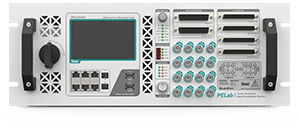

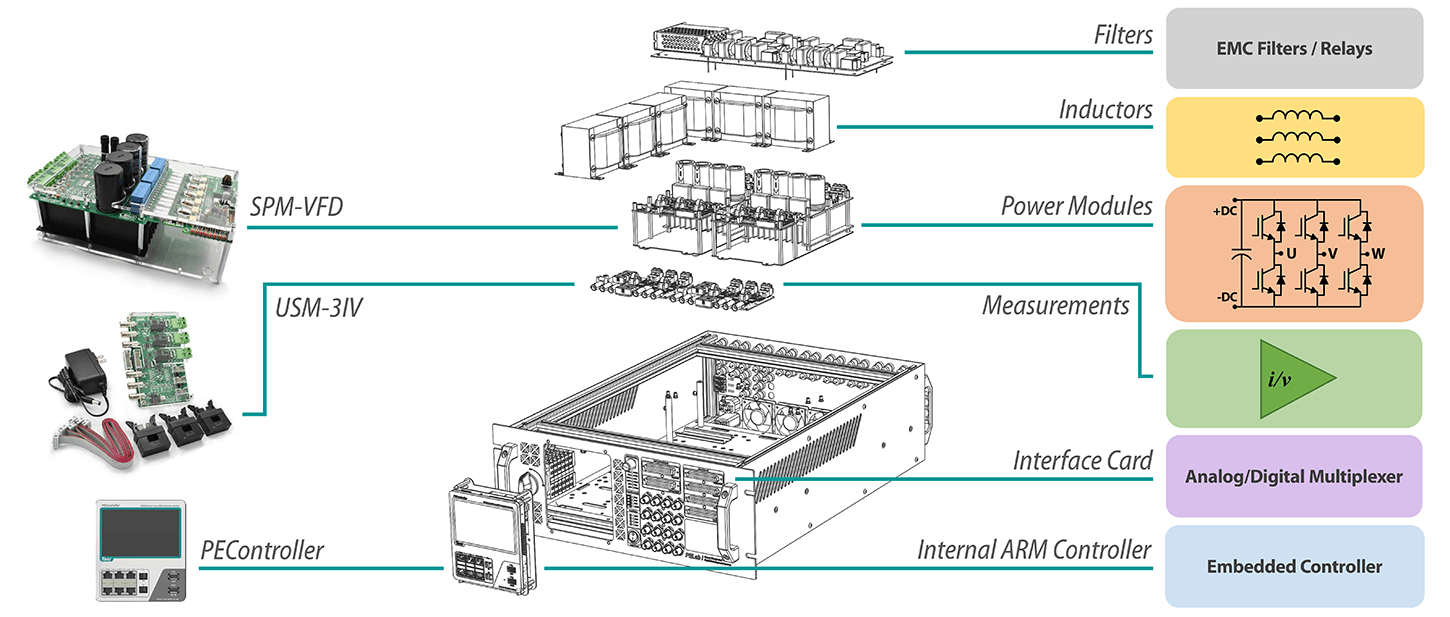

Inside a PELab
A Modular Construction Using Standard Products

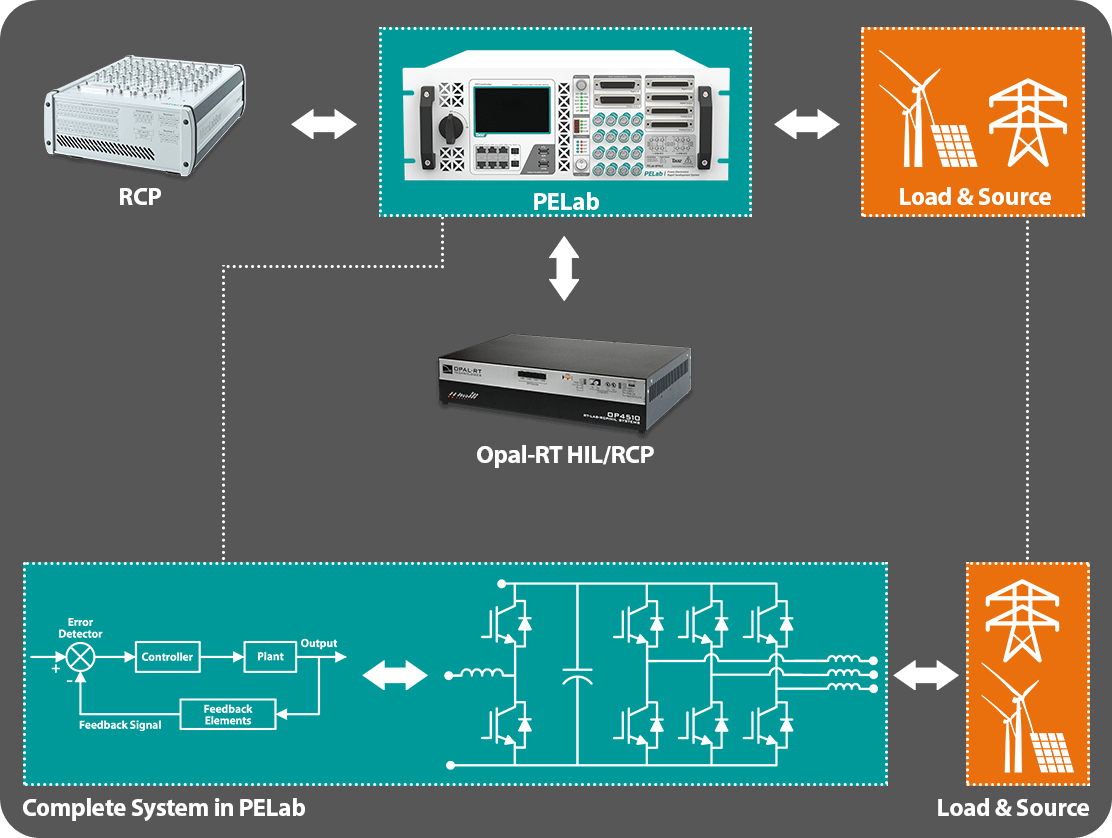

Single Setup R&D Solution
Internal Embedded Controller Options
High-Performance Architecture

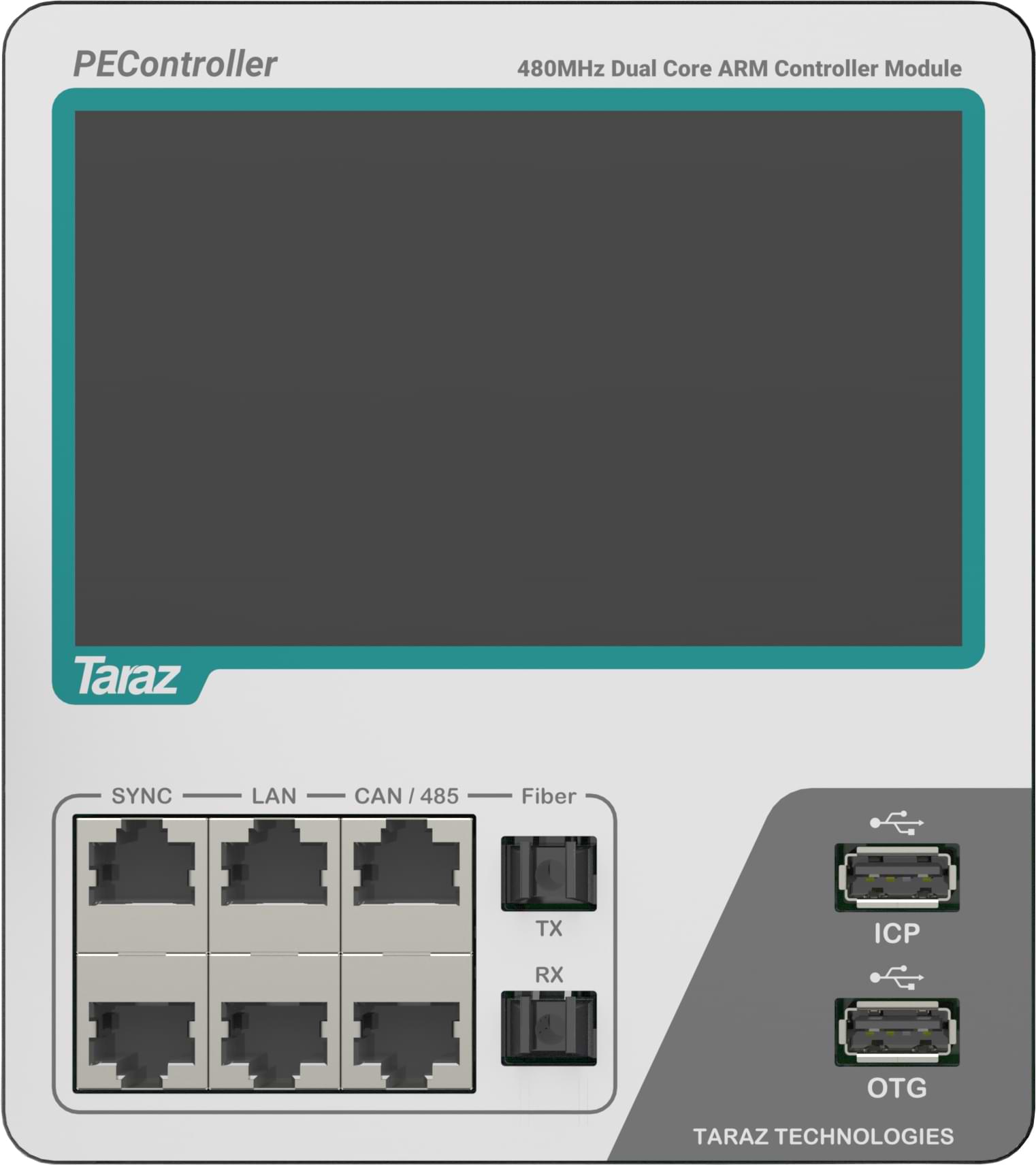

PEController | ST ARM STM32H745 Based
Integrations
Programming
Performance & GUI
✓ 480MHz (M7) / 240MHz (M4), Dual-Core
✓ 5″ Touch Display
Analog
✓ 16CH, 250ksps @ 16-Bit, ±10V Input
✓ Simultaneous Sampling
✓ High-Accuracy Dedicated ADC Chips
Communications
✓ LAN, CAN, RS-485, Fiber Optics & Sync
✓ High-Speed USB for DAQ
Rapid Control Prototyping
PE-RCP | TI C2000 F28379D Based Controller
Programming
Performance
✓ 200MHz, Dual-Core
Analog
✓ 8CH, 360KSps @ 16-Bit, ±10V Input
✓ 8CH, 430KSps @ 12-Bit, ±10V Input
Communications
✓ CAN, Fiber Optics & Sync

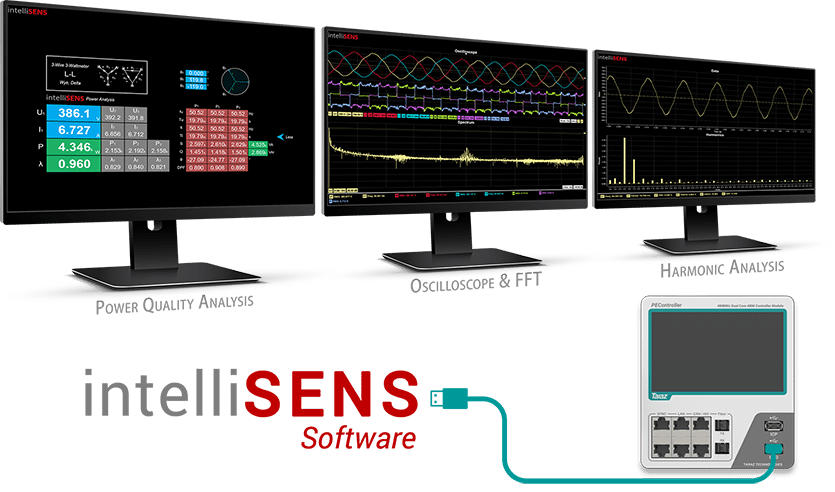

Monitor, Record & Share Your Experimental Results
With intelliSENS DAQ Software
The PEController come an optional intelliSENS software integration license which enables data acquisition on all 16 simultaneous sampling Channels at 100 KSps. The intelliSENS software is a ready-to-use application software designed to assist students, researchers, and engineers in the field of power electronics to develop, monitor & test power electronics systems by replacing multiple lab equipment, such as oscilloscopes, spectrum analyzers, power analyzers, and recorders. It can perform the following:
✓ 16CH Data Acquisition at 100KSps, 16-Bit, Simultaneous Sampling
✓ Oscilloscope with Measurements, Math Functions & FFT
✓ Harmonic Analysis such as THD & THD+N
✓ Power Quality Analysis such as PF, Real & Reactive Power
✓ Recorder Functionality while Retaining Complete Analysis Capabilities
Configurable Power Electronics Hardware
Available Topologies and Configurations
- PELab-6PH
-
Configurations:
> 200-800V DC Link
> 8-50A Leg Current
> SiC, MOSFET or IGBT Switches
> Optional Inductors, EMC Filter & Relays
-
Applications:
> Motor Drives
> Solar Grid-Tie/Off-Grid Inverters
> 3 Phase Back to Back Inverters
- PELab-MMC
-
Configurations:
> 200-800V DC Link
> 8-16A Leg Current
> SiC, MOSFET or IGBT Switches
> Optional Inductors, EMC Filter & Relays
-
Applications:
> Bidirectional EV Charger
> Modular Multilevel Converter (MMC)
> Cascaded H-Bridge Converter
- PELab-TNPC
-
Configurations:
> 200-800V DC Link
> 8-16A Leg Current
> SiC, MOSFET or IGBT Switches
> Optional Inductors, EMC Filter & Relays
-
Applications:
> 3-Level Motor Drives
> Solar 3-Level Grid-Tie/Off-Grid Inverters
> Hybrid Inverters
- PELab-NPC
-
Configurations:
> 400-1000V DC Link
> 8-16A Leg Current
> SiC, MOSFET or IGBT Switches
> Optional Inductors, EMC Filter & Relays
-
Applications:
> 3-Level Motor Drives
> Solar 3-Level Grid-Tie/Off-Grid Inverters
> Hybrid Inverters
Resources & Support
The PELab is supported by embedded C libraries (for PEController), multiple application examples and a getting started guide. The following application examples have been implemented:
✓ V/f Control of AC Induction Motor
✓ Three-Phase Grid-Tie Inverter with Boost Converter
In addition, more resources will be added including video tutorials and demos. Please check the technical resources page for the latest material.
Related Products
PE-RCP Box
TI C2000 F28379D Based RCP Controller
The PE-RCP Box is ideal for power electronics inverters and converters control system implementation due to its Rapid Control Prototyping capability directly from MATLAB, PSIM & PLECS. In addition, the open-source MATLAB Simulink models will greatly accelerate the development cycle of power electronics converters with the help of available application examples. Furthermore, large resources are also available from Texas Instruments that support the development of the F28379D ControlCARD which is used in the PE-RCP Box.
Typhoon HIL Interface Module
This product is designed to facilitate direct connection between the PELab and Typhoon HIL real-time simulators. It can also provide connectivity to Taraz Technologies other products such as the PEController and PE-RCP control cards, as well as the USM-3IV isolated voltage and current measurement module. It provides a direct connection between the Typhoon HIL 96-pin DIN41612 type connectors, the PELab DB37 connectors, the PEController/PE-RCP IDC 40-pin connectors and the USM-3IV IDC 16-pin connectors. This module can be fit on a standard 19” rack cabinet using the provided accessories or used on a desktop standalone.

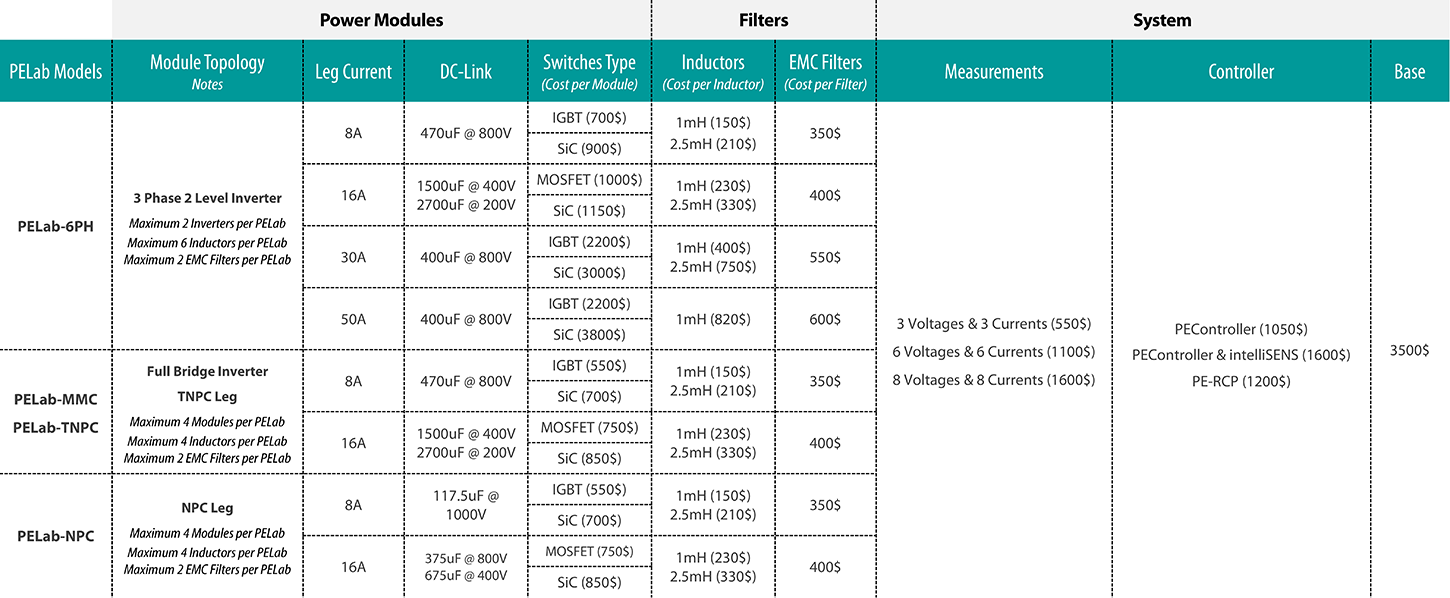

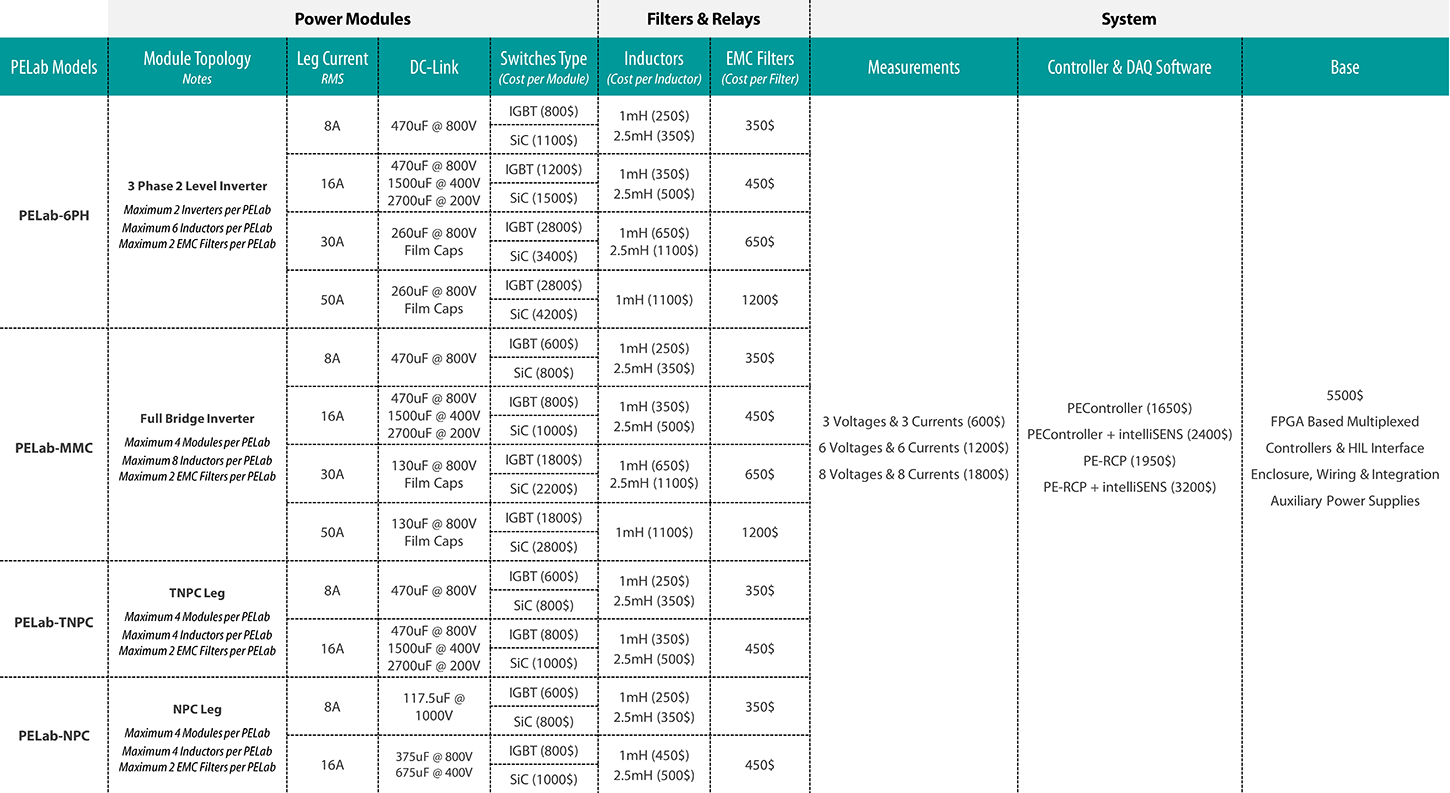

Pricing Information
*Note: 8A & 16A versions of SiC power modules are capable of up to 300kHz switching frequency operation with power de-rating. Higher current versions can operate at 200kHz maximum switching frequency with power de-rating.
**Note: The PELab system accepts only 16 digital input channels, therefore, pre-charge and disconnection relays are only available when enough digital input channels are present. This can affect PELab-MMC/TNPC/NPC models with 16 independent switches control in the system.
Request a Meeting
Looking for different rating, topology or application? Lets talk.
