Our PCB Assembly process is optimized for prototyping and batch production runs. We try our best to offer highest quality and reliability to our customers to become their partner. Our prices are difficult to beat by competition due to our innovative process techniques and continuous improvements.
Review the necessary files and order details.
Receive the components & PCBs from the customer.
Make the SMT paste stencil and print the paste.
An automatic pick and place machine places the SMT components.

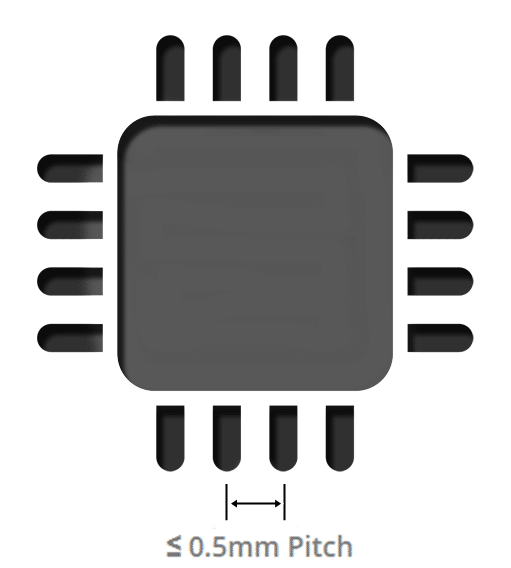

Fine pitch components are placed by Precision Placer.
Over size components are placed by hand
A full convection reflow oven is used to solder SMT components.
Digital microscope is used to verify placement accuracy and to detect any solder bridges.
Thru-hole parts are inserted by hand and soldered manually.
Finished PCBs are cleaned in ultrasonic cleaning stage if required.
