You are here: Home1 / Shop2 / Smart Probes3 / intelliSENS i2 Current Probe

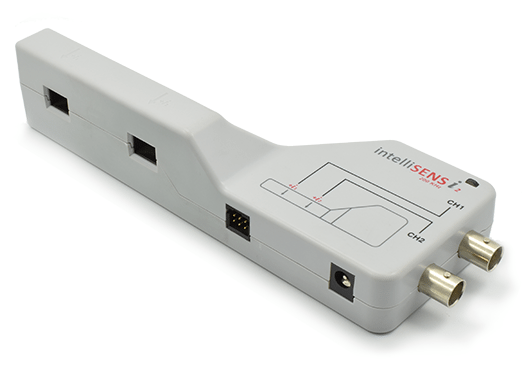

±100A AC/DC Dual Smart Current Probe
intelliSENS i2 (INTi2-A1)

DATASHEET SOFTWARE

oscilloscope ac dc current probe with daq

Applications

✓ Power Electronics Measurements
✓ Motor Current Monitoring
✓ 3 Phase Current Measurement

Features

✓ Oscilloscope Current Probe with Data Acquisition
✓ Shareable Interactive Experiment Recordings
✓ Harmonic (THD) Analysis & Measurement
✓ Multiple Probes Synchronization
✓ 16bit Resolution at 500ksps per Channel
✓ High Bandwidth & Accuracy

Certification & Warranty

✓ CE & FCC Certified
✓ 1 Year Standard Warranty

Buy

395.00 $ USD

Quantity Price
1-9 10-29 30+
395.00 $ 355.50 $ 316.00 $

Specifications

Parameter Value Unit Parameter Value Unit
Channels 2 – Range ±100 A
Bandwidth DC-200 kHz Sensitivity 0.1 V/A
Accuracy (BNC) <0.7 % Offset ±14 mV
Digital Resolution 16 Bits Sample Rate per CH 500 ksps
Rise Time (BNC) <2 us System Voltage (OV CAT III) 600 V
Opening Dimensions 12.7 x 8.5 mm System Voltage (OV CAT III) 1000 V
Supply Voltage 5 V Supply Current 1.5 A
Connectivity USB 2.0 HS 480Mbps and SPI – Certifications CE & FCC –

* Note 1: All ratings are given at 25°C ambient temperature unless otherwise specified.

Probes with Data Acquisition; Optimized For Power Electronics

intelliSENS Probes Connects Both to Oscilloscope & PC, With Multiple Probe Syncronization

intellisens serier setup optimized for power electronics circuit analysis
More About intelliSENS Series

intelliSENS probes are smart, agile, new generation of probing technology which connects to both oscilloscope & PC simultaneously. With power electronics testing requirements in mind, multiple probe synchronization can be achieved to measure many channels at the same time. They are backed by powerful user friendly analysis tools for instant performance measurement, recording and analysis. These probes are must have in modern power electronics laboratories and research environments, where multi-channel measurements, logging and advanced analysis are required tools for research and development. amp meter fluke clamp meter amp clamp dc amp meter clamp meter priceampere meter, amp meter

More About intelliSENS Series

Interactive Recordings and Harmonic Analysis

Monitor and Record Experiment, Analyze & Share Live Results!

Perform power circuit analysis with intellisens application software for DAQ system

Interactive recording view experiment data as if its coming live from probes. You can measure voltage, move cursor, calculate RMS, frequency etc. and perform THD analysis of recorded waveforms. All are stored in single intelliSENS format file that you can share with your colleagues, send to your professor, or keep for your record for comparison and improvements. With PDF like sharing, space and time barriers are removed between team members, enhanced learning achieved between students and professors.  thd probe, total harmonic distortion probe, digital current meter, digital clamp meter, digital current meter price, portable oscilloscope

Perform power circuit analysis with intellisens application software for DAQ system

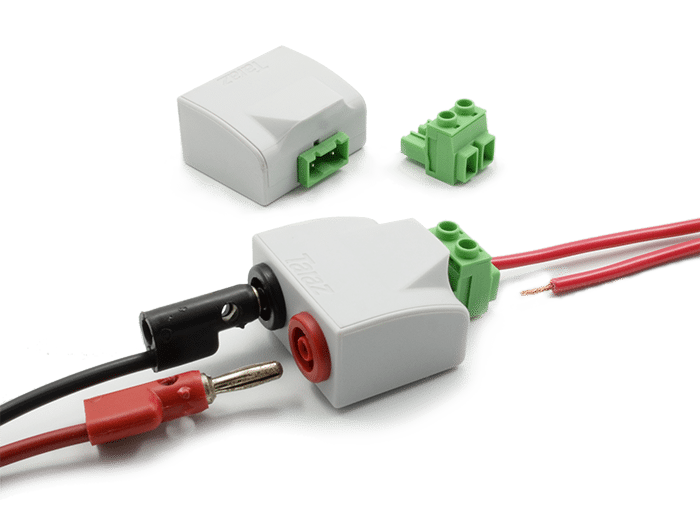

Banana Connector to Wire Adapter (TBAN)

Handy Tool For Easy Wiring

Our probe is not a clamp one, so we created a handy accessory for the lab taking safety into consideration. You can use standard banana plugs with our current probe seamlessly using the TBAN which allows disconnection between the probe and the experimental setup easily. It can also be used to increase sensitivity using multiple turns on the probe (sensitivity = 0.1 x No. of turns) to measure much smaller currents at high accuracy. Each probe includes two TBAN adapters.

3 phase analysis using intellisens application software on laptop

2 Channels for 3 Phase Measurements

3 Phase Motor Applications Require 2 Phase Measurements Only

3 phase analysis using intellisens application software on laptop

For three phase motor applications, only two phases are measured. The third phase is calculated from the relation that sum of all phases is zero since its a 3 wire system, and kirchhoff low can be applied. Because of that, single probe with dual channel measurements is enough for motor applications. intelliSENS software also generates the third phase with a dedicated button, which saves you time and effort.

A new cost and time efficient setup for power and harmonics analysis with data logging
1
2
3
4
A new cost and time efficient setup for power and harmonics analysis with data logging
1

intelliSENS i2

Dual Channel Current Probe, 200kHz, ±100A Range, 500ksps@16bit per channel

2

intelliSENS DAQ

8 CH DAQ, ±10V, 125ksps@16bit per channel, Simultaneous Sampling

3

intelliSENS Bridge

3rd Party Differential/Current Probe Interface to intelliSENS Software, 1Msps@14bit, up to ±10V input

4

intelliSENS v2

Dual Channel Differential Probe, 25MHz, ±1000V Range, 5Msps@12bit per channel

  • intelliSENS i2
  • Dual Channel Current Probe
  • 200kHz, ±100A Range, 500ksps@16bit per channel
  • $395
  • Details & Buy

  • intelliSENS DAQ
  • 8 Channels Data Acquisition
  • ±10V, 125ksps@16bit per channel, Simultaneous Sampling
  • $299
  • Coming Soon

  • intelliSENS Bridge
  • 3rd Party Differential/Current Probes Interface to intelliSENS Software
  • 1Msps@14bit, up to ±10V input
  • $199
  • Coming Soon

  • intelliSENS v2
  • Dual Channel Differential Probe
  • 25MHz, ±1000V Range, 5Msps@12bit per channel
  • $495
  • Coming Soon
