Typhoon HIL Interface Module
✓ Interface PELab to Typhoon HIL Real-Time Simulators
✓ Interface PEController to Typhoon HIL Real-Time Simulators
✓ Interface PE-RCP to Typhoon HIL Real-Time Simulators
✓ Interface PE-RCP Box to Typhoon HIL Real-Time Simulators
✓ Interface OPAL-RT to Typhoon HIL Real-Time Simulators

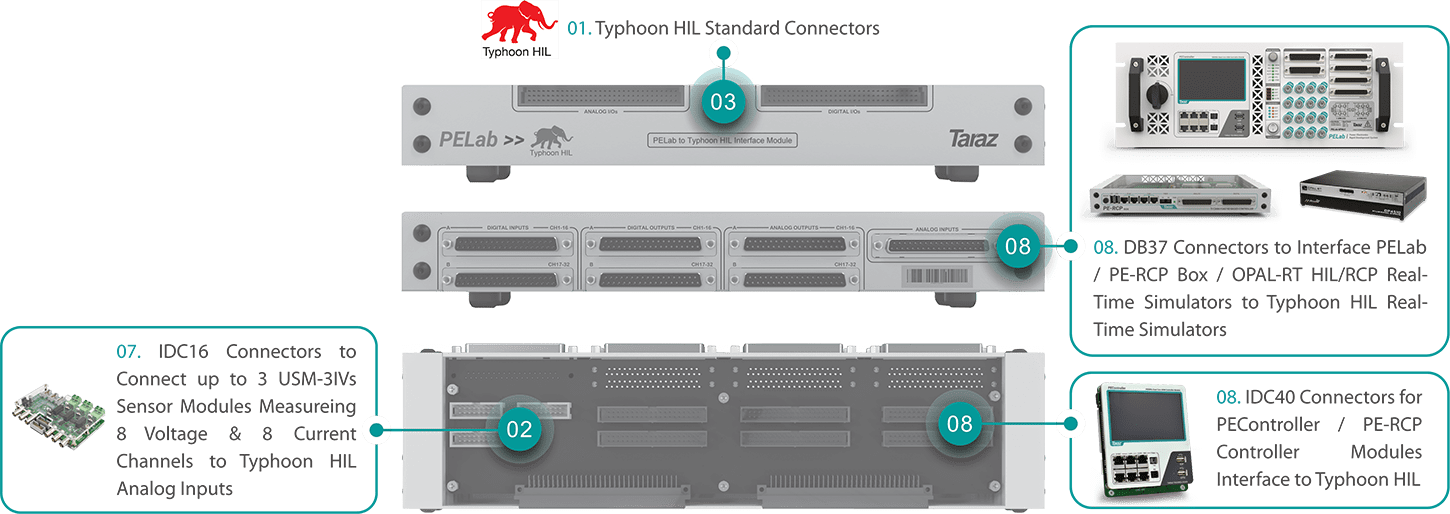

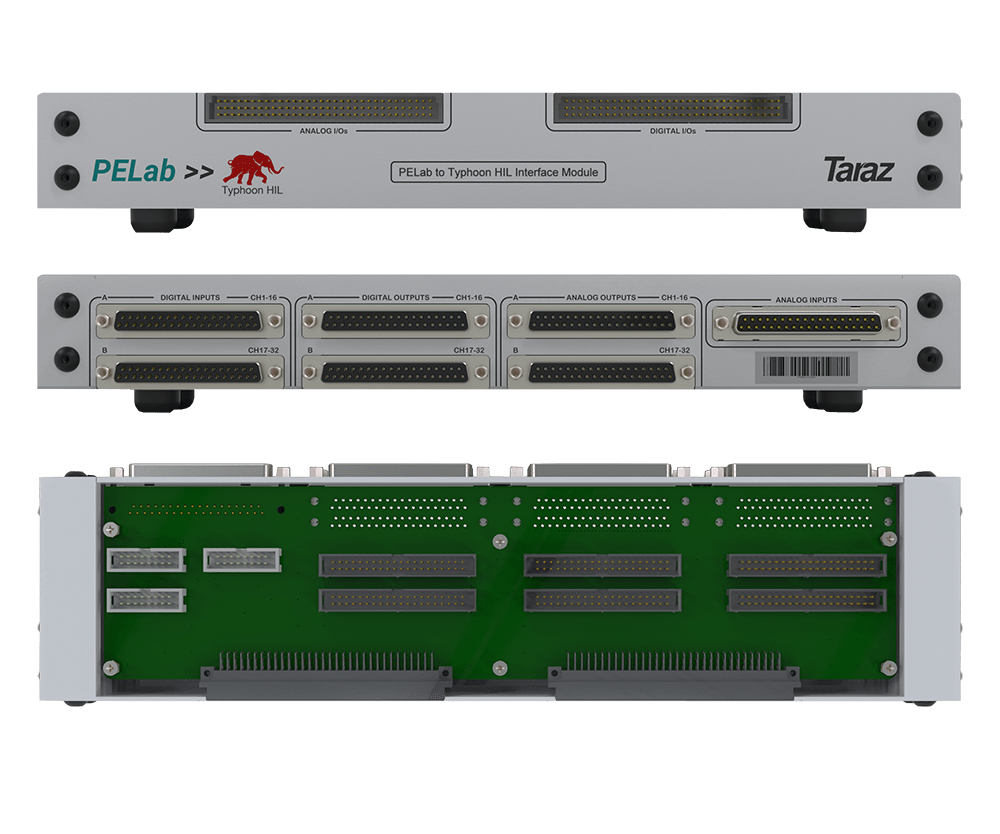

This product is designed to facilitate direct connection between the PELab and Typhoon HIL real-time simulators. It can also provide connectivity to Taraz Technologies other products such as the PEController and PE-RCP control cards, as well as the USM-3IV isolated voltage and current measurement module. It provides a direct connection between the Typhoon HIL 96-pin DIN41612 type connectors, the PELab DB37 connectors, the PEController/PE-RCP IDC 40-pin connectors and the USM-3IV IDC 16-pin connectors. This module can be fit on a standard 19” rack cabinet using the provided accessories or used on a desktop standalone.
