Half Bridge (Buck/Boost/MPPT) Development Kit
SPM-HB-KIT

DATASHEET.STEP

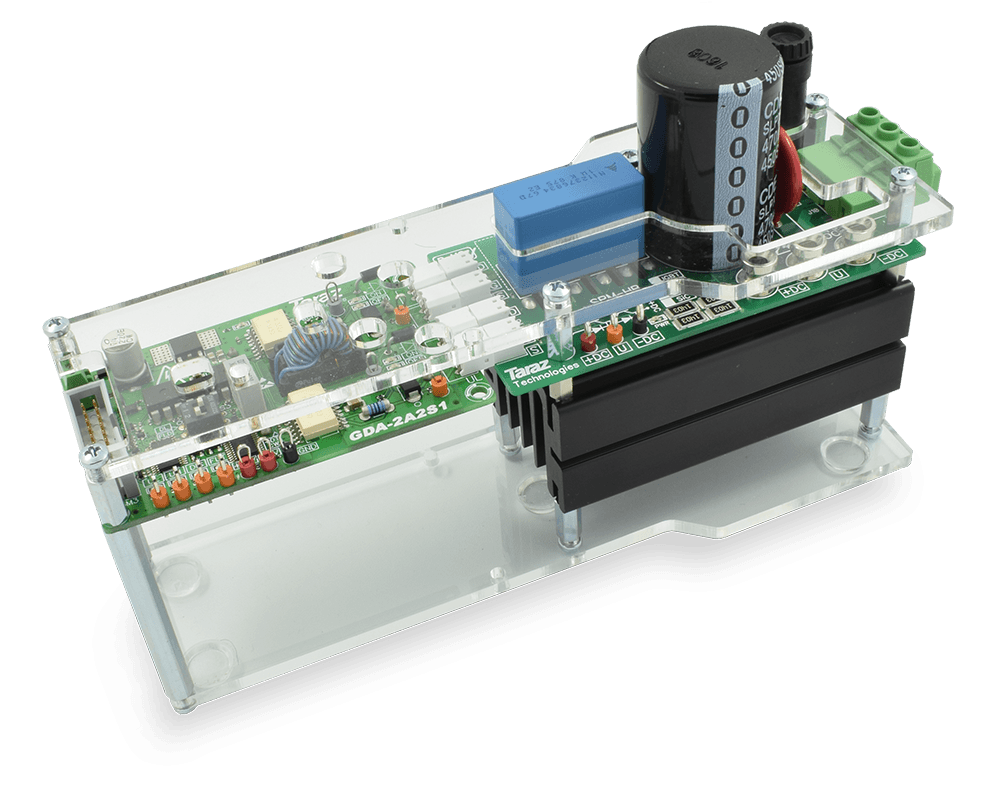

SPM-HB Half Bridge (Buck/Boost/MPPT) development kit

Basic Schematic

Half Bridge Kit Circuit Diagram

Features

✓ 350V DC Link, 1.2 kW Output Power

✓ SiC, IGBT and MOSFET Switches Option

✓ TB & Banana Input, Output Connectors

✓ DC Link Over Voltage Protection

✓ Direct Interface with Gate Drive Modules

Configure and Buy

290.00 $ – 320.00 $ USD

Quantity Price
1-4 5-9 10+
290.00 $ 261.00 $ 232.00 $
Quantity Price
1-4 5-9 10+
320.00 $ 288.00 $ 256.00 $
Clear

Application Examples

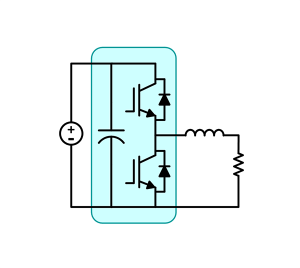

Buck DC/DC Converter

Buck DC/DC Converter

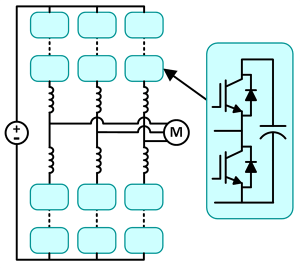

Modular Multilevel Converter (MMC)

Modular Multilevel Converter (MMC)

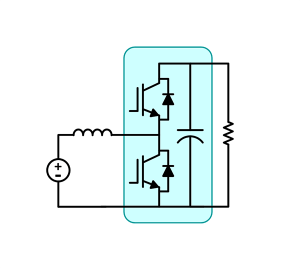

Solar MPPT Boost Converter

Solar MPPT Boost Converter

Specifications

Parameter Test Condition MOSFET IGBT SiC Unit
DC Input Voltage 350 350 350 Vdc
Over-Voltage Protection Clamping Voltage 370 370 370 Vdc
Output Current @ 2kHz, TA 25C 8.3 9.4 11.2 Arms
Output Power @ 2kHz, 25C 0.9 1 1.2 kW
Overload Capacity @ 2kHz, 25C, 10s 100 100 100 %
Switching Frequency Max. 100 30 200 kHz
Short Circuit Withstand Time Max. 0 10 10 μs

* Note 1: All ratings are given at 25°C ambient temperature unless otherwise specified.
