±100A AC/DC 200kHz Dual Channel Current Probe
analogSENS i2 (ANi2-A1)

DATASHEET

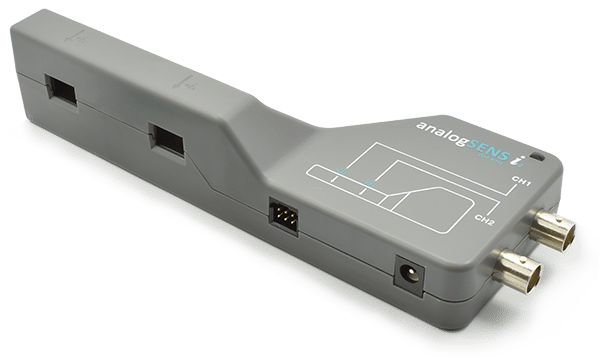

analogSENS i2, current probe

Applications

✓ Power Electronics Measurements
✓ Motor Current Monitoring
✓ 3 Phase Current Measurement

Features

✓ Oscilloscope Current Probe
✓ High Bandwidth (DC – 200 kHz)
✓ High Accuracy of 0.7%
✓ Compatible with all Oscilloscopes
✓ Lowest Cost High Quality Probe

Certification & Warranty

✓ CE & FCC Certified
✓ 1 Year Standard Warranty

Buy

249.00 $ USD

Quantity Price
1-9 10-29 30+
248.00 $ 223.20 $ 198.40 $

Specifications

Parameter Value Unit Parameter Value Unit
Channels 2 – Range ±100 A
Bandwidth DC-200 kHz Sensitivity 0.1 V/A
Accuracy (BNC) <0.7 % Offset ±14 mV
Rise Time (BNC) <2 us System Voltage (OV CAT III) 600 V
Opening Dimensions 12.7 x 8.5 mm System Voltage (OV CAT III) 1000 V
Supply Voltage 5 V Supply Current 1.5 A

Banana Connector to Wire Adapter (TBAN)

Handy Tool For Easy Wiring

Our probe is not a clamp one, so we created a handy accessory for the lab taking safety into consideration. You can use standard banana plugs with our current probe seamlessly using the TBAN which allows disconnection between the probe and the experimental setup easily. It can also be used to increase sensitivity using multiple turns on the probe (sensitivity = 0.1 x No. of turns) to measure much smaller currents at high accuracy. Each probe includes two TBAN adapters.

3 phase analysis using intellisens application software on laptop

2 Channels for 3 Phase Measurements

3 Phase Motor Applications Require 2 Phase Measurements Only

3 phase analysis using intellisens application software on laptop

For three phase motor applications, only two phases are measured. The third phase is calculated from the relation that sum of all phases is zero since its a 3 wire system, and kirchhoff low can be applied. Because of that, single probe with dual channel measurements is enough for motor applications. intelliSENS software also generates the third phase with a dedicated button, which saves you time and effort.

A new cost and time efficient setup for power and harmonics analysis with data logging
1
2
3
4
A new cost and time efficient setup for power and harmonics analysis with data logging
1

intelliSENS i2

Dual Channel Current Probe, 200kHz, ±100A Range, 500ksps@16bit per channel

2

intelliSENS DAQ

8 CH DAQ, ±10V, 125ksps@16bit per channel, Simultaneous Sampling

3

intelliSENS Bridge

3rd Party Differential/Current Probe Interface to intelliSENS Software, 1Msps@14bit, up to ±10V input

4

intelliSENS v2

Dual Channel Differential Probe, 25MHz, ±1000V Range, 5Msps@12bit per channel
