40kW SiC/IGBT 3 Phase Inverter Stack
SPM-VFDHP

DATASHEET.STEP

SPM-VFDHP 40kW SiC/IGBT 3 Phase Inverter Stack

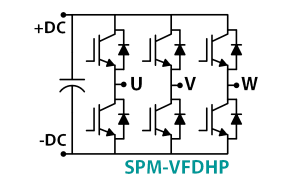

Basic Schematic

SPM-VFDHP 40kW 3 Phase Inverter Stack Schematic

Features

✓ Upto 40kW | 50A | 750V DC-Link
✓ Optional IGBT and SiC Power Switches
✓ High MTBF 900V DC-Link Film Capacitors
✓ Built-in SCP, OTP & OVP Protections
✓ Isolated Control Inputs & Outputs

Configure and Buy

2,200.00 $ – 3,800.00 $ USD

Quantity Price
1-4 5-9 10+
3,800.00 $ 3,420.00 $ 3,040.00 $
Quantity Price
1-4 5-9 10+
3,800.00 $ 3,420.00 $ 3,040.00 $
Quantity Price
1-4 5-9 10+
3,800.00 $ 3,420.00 $ 3,040.00 $
Quantity Price
1-4 5-9 10+
3,800.00 $ 3,420.00 $ 3,040.00 $
Quantity Price
1-4 5-9 10+
3,800.00 $ 3,420.00 $ 3,040.00 $
Quantity Price
1-4 5-9 10+
3,800.00 $ 3,420.00 $ 3,040.00 $
Quantity Price
1-4 5-9 10+
2,200.00 $ 1,980.00 $ 1,760.00 $
Quantity Price
1-4 5-9 10+
2,200.00 $ 1,980.00 $ 1,760.00 $
Quantity Price
1-4 5-9 10+
2,200.00 $ 1,980.00 $ 1,760.00 $
Quantity Price
1-4 5-9 10+
2,200.00 $ 1,980.00 $ 1,760.00 $
Quantity Price
1-4 5-9 10+
2,200.00 $ 1,980.00 $ 1,760.00 $
Quantity Price
1-4 5-9 10+
2,200.00 $ 1,980.00 $ 1,760.00 $
Clear

Application Examples

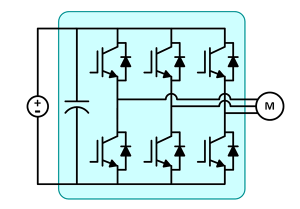

3 Phase Inverter for Motor Drive

3 Phase Inverter for Motor Drive

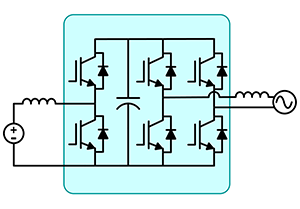

Single Phase Solar Inverter with Boost MPPT

Single Phase Solar Inverter with Boost MPPT

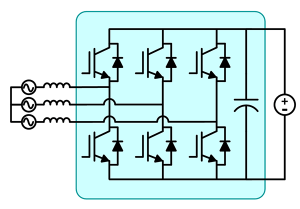

3 Phase Active Rectifier

3 Phase Active Rectifier

Overview

SPM-VFDHP is a high-power 3 phase inverter stack designed with flexibility and reliability in mind. It can be ordered with either SiC or IGBT switches based on application switching frequency requirements. Furthermore, a safe and easy method for connection and disconnection of the power terminals is provided with the help of lever-actuated spring cage terminal blocks. Additionally, this 3 phase inverter stack is equipped with a directly pluggable gate driver module which has test points and LEDs providing instant visual feedback during run-time and fault conditions. In addition, isolation optocouplers have been used for better EMI immunity and handling of high dv/dt spikes, making it suitable for applications having excessive noise such as motor drives and meeting the challenges of high-speed switching with SiC FETs. The inverter built-in protection features include short circuit protection, over temperature protection & serviceable Varistor based over voltage protection, additionally, overload protection can be achieved using a standard 63A circuit breaker.Also, the system reliability and MTBF is also greatly enhanced by using 900V DC-Link film capacitors which can handle high currents, high temperatures and even higher than rated voltages without failure or degradation. Thus, providing you with dependable operation during service lifetime.

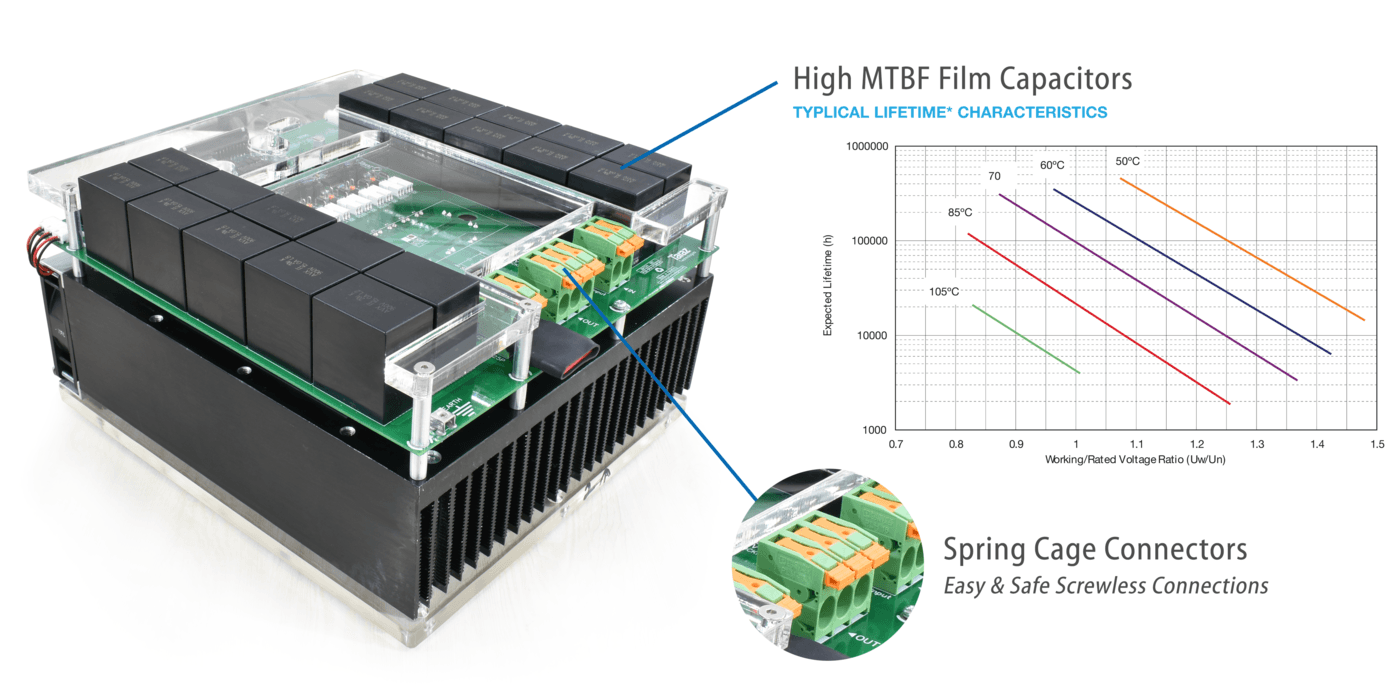

Film Capacitor Based Inverter Stack

Features

Optional SiC/IGBT Switches

The inverter can be factory configured with either SiC or IGBT switches. High frequency applications, such as, solar PV inverters and active rectifiers are more likely to use SiC switches. Whereas, motor drive applications can suffice with low switching frequency IGBT switches. Consequently, making this inverter stack a good fit for a wide variety of power electronics applications.

Film Capacitor Based DC-Link

The SPM-VFDHP uses Metallized Polypropylene Film capacitors in the DC Link. These capacitors are 900V, 105oC ambient temperature rated and provide a very high MTBF (Mean Time Between Failure) of more than 400,000 Hrs @ 50C ambient temperature. Unlike electrolytic capacitors, film capacitors can also sustain very high RMS current, as well as, more than 1.4 times the rated voltage without failure or degradation.

Advanced Protections

The inverter built-in protection features include short circuit protection, over temperature protection & serviceable Varistor based over voltage protection, additionally, overload protection can be achieved using a standard 63A circuit breaker.

Isolated Inputs/Outputs

All inverter logic inputs and outputs are galvanically isolated with factory configured low or high impedance optocouplers, thus, greatly enhancing EMI immunity of the signals and providing robust insulation between the controller and inverter to avoid false triggering due to common mode noise.

Pluggable Gate Driver Module

VFDHP is assembled with a directly pluggable 6 channel gate driver board optimized for the switches used in the inverter. Furthermore, the driver board has LEDs for indicating inputs, faults and disable signals, as well as, test points. Pluggable nature of the gate driver also provides flexibility for upgrades, as well as, easy maintenance during the life time of the inverter.

Lever Actuated Spring Cage Connectors

Screwless connection is possible with the help of a lever-operated spring cage connector for inputs and outputs of the inverter, therefore, insuring safe and reliable high power connections and disconnections without additional tools.

Specifications

Parameter Notes Specifications (IGBT) Specifications (SiC)
Input Voltage Maximum 750 VDC 750 VDC
Input Voltage Recommended 600 VDC 600 VDC
Output Current RMS, Max. Per Phase 50 A 50 A
Output Power 600 VDC, 415 VAC Out 36 kVA 36 kVA
Output Power 700 VDC, 480 VAC Out 41.5 kVA 41.5 kVA
Overload Capacity 30s Max. @ 25°C 150% 150%
Over-Voltage Protection Varistor: V25S625P 825 VDC 825 VDC
Short Circuit Protection Gate Driver Based ✔ ✔
Short Circuit Current Typical 315 A 210 A
Over Temperature Protection Trips @ 85°C ✔ ✔
Over Load Protection More Information in Datasheet ✘ ✘
Switching Frequency With Derating 30 kHz 50 kHz
Switching Frequency Without Derating 5 kHz 20 kHz
Dead-time Minimum 2.2 μs 0.3 μs
Capacitor Type Metallized Polypropylene Film Metallized Polypropylene Film
DC-Link Capacitance 200uF | 900V 200uF | 900V
Dimensions 260 x 292.5 x 161.5 (mm) 260 x 292.5 x 161.5 (mm)

* Note 1: All ratings are given at 25°C ambient temperature unless otherwise specified.
