Full Bridge Inverter Development Kit
SPM-FB-KIT

DATASHEET.STEP

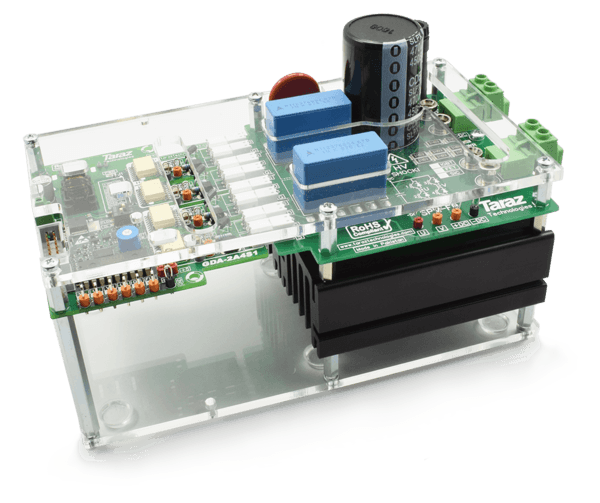

SPM-FB Full Bridge Single Phase Inverter Development Board

Basic Schematic

Full Bridge Kit Circuit Diagram

Features

✓ 350V DC Link, 2.4 kW Output Power
✓ SiC, IGBT and MOSFET Switches Option
✓ TB & Banana Input, Output Connectors
✓ DC Link Over Voltage Protection
✓ Direct Interface with Gate Drive Modules

Configure and Buy

460.00 $ – 520.00 $ USD

Quantity Price
1-4 5-9 10+
460.00 $ 414.00 $ 368.00 $
Quantity Price
1-4 5-9 10+
520.00 $ 468.00 $ 416.00 $
Clear

Application Examples

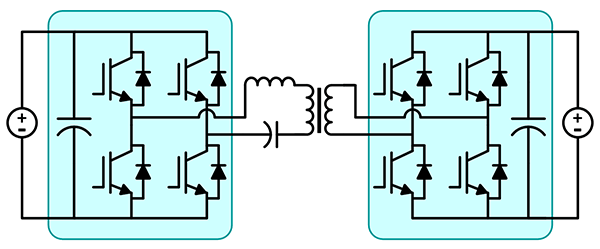

LLC Resonant Converter

LLC Resonant Converter

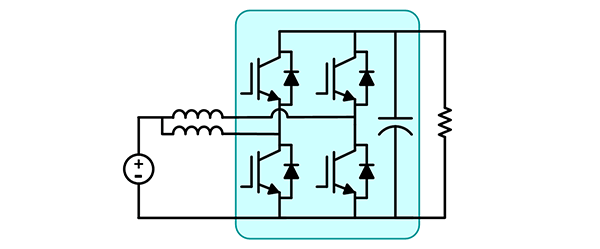

Interleaved Boost DC/DC Converter

Interleaved Boost DC/DC Converter

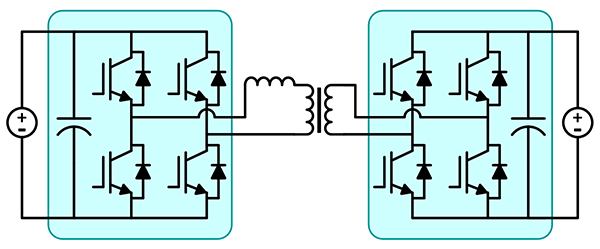

Dual Active Bridge (DAB) Converter

Dual Active Bridge (DAB) Converter

Specifications

Parameter Test Condition MOSFET IGBT SiC Unit
DC Input Voltage 350 350 350 Vdc
Over-Voltage Protection Clamping Voltage 370 370 370 Vdc
Output Current @ 2kHz, TA 25C 8.3 9.4 11.2 Arms
Output Power @ 2kHz, 25C 1.8 2 2.4 kW
Overload Capacity @ 2kHz, 25C, 10s 100 100 100 %
Switching Frequency Max. 100 30 200 kHz
Short Circuit Withstand Time Max. 0 10 10 μs

* Note 1: All ratings are given at 25°C ambient temperature unless otherwise specified.
